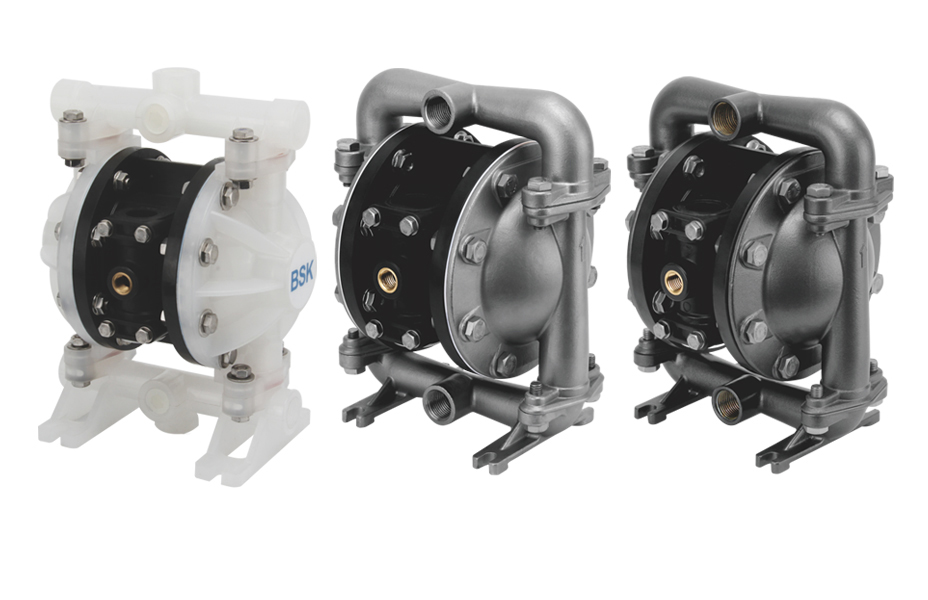

BP15XX-XXXX-XViews / 8225
BP15XX-XXXX-X
|
BP
|
15XX-
|
X
|
X
|
X
|
X
|
-X
|
|
Center body
|
Housing material
|
Seat material
|
Ball material
|
Diaphragm material
|
O-ring material
|
Port
|
|
Polypropylene
|
PP - Polypropylene
SS - Stainless steel
CS - Carbon steel
|
P - Polypropylene
S - Stainless steel
|
9 - Santoprene®
T - PTFE
S - Stainless steel
P - UPE
|
9 - Santoprene®
T - PTFE
|
1-NBR
4-PTFE(COVE)
|
A - BSP (thread)
B - NPT
|
Pump Data
|
Working air pressure
|
0.15-0.69 Mpa
|
|
Maximum outlet pressure
|
0.69 Mpa
|
|
Maximum flow rate
|
45.3 lpm
|
|
Maximum particle size
|
2.5 mm
|
|
Maximum dry suction
|
28M(水)
|
|
Noise level @70psi
|
75 dB
|
|
Weight
|
|
|
Plastic
|
2.4 kg
|
|
Stainless steel
|
5.5 kg
|
|
Carbon steel
|
5.5 kg
|

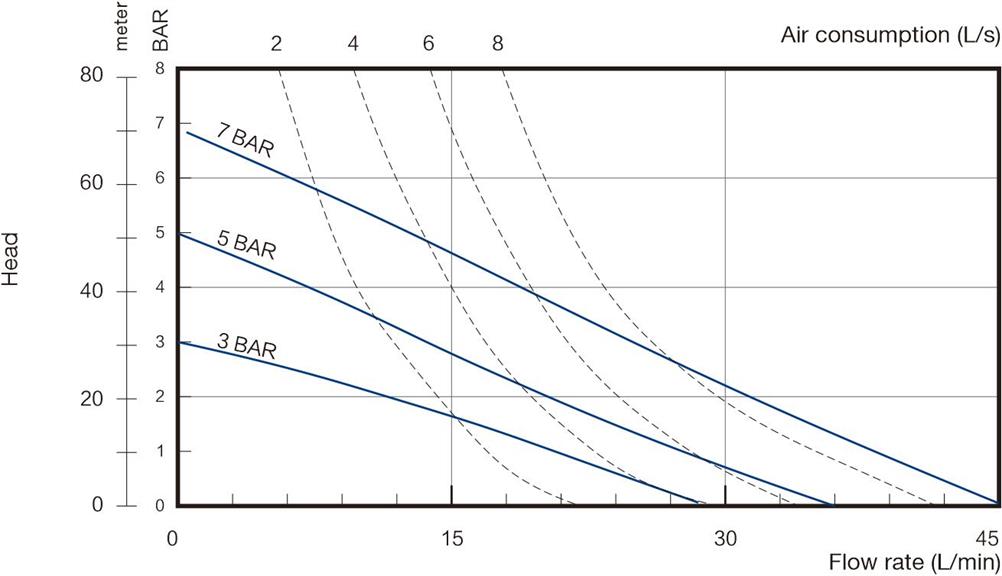

PERFORMANCE CURVE
